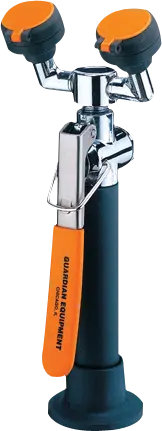

Guardian Equipment Deck Mounted Eye Wash/Drench Hose

• Brand Name | Guardian Equipment
• Model | G5022

Model G5022, Outlet Head Assembly: Two GS-Plus spray heads mounted side-byside on chrome plated brass elbow fittings. Each GS-Plus spray head has “flip top” dust cover, internal flow control and filter to remove impurities from water flow. Valve: Squeeze valve activated by stainless steel lever handle. Valve has locking clip which engages when handle is depressed, providing “hands free” operation. Valve stays open until locking clip is released. Hose: 8' Reinforced PVC hose. 300 PSI maximum rated working pressure. Recommended pressure for unit is 80 PSI maximum. Mounting: Deck flange for countertop mounting. Flange has handle locator guide to assure that spray heads and handle face forward at all times. Supply: 3/8" IPS male swivel-type inlet. Sign: ANSI-compliant identification sign.
