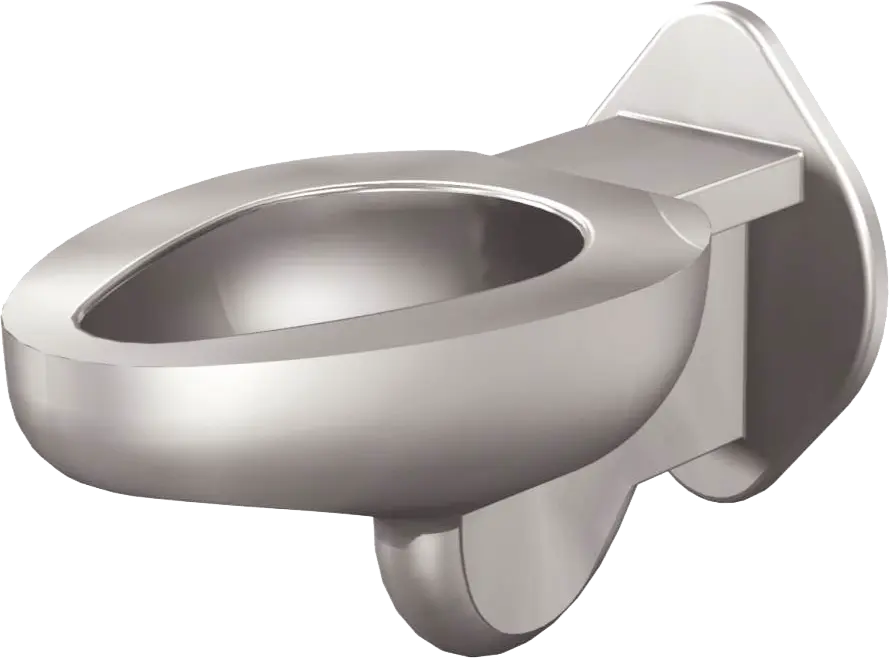

Penal-Ware 1675 Series Blowout Jet Toilet - Off-Floor Prison

• ADA | Yes
• Series | Penal-Ware®
• Brand Name | Acorn
• Model | 1675

Fixture is arranged to be installed on finished wall and serviced from an accessible pipe chase.Optional Wall Sleeve or Metal Template is recommended for all installations for required wallopenings. Toilet bowl is fabricated from 14 gauge, type 304 stainless steel and is seamless weldedconstruction. Wall flange is structurally reinforced. Fixture is polished to a satin finish. There are noaccessible voids or crevices where contraband can be concealed.

Toilet is a blowout jet type with an elongated bowl manufactured to ANSI 112.19.2M requirementsand requires a minimum of 35 PSI flow pressure. Toilet uses a water consumption of 1.6 gallonsper flush or less. Trap has a minimum 3-1/2" seal and will pass a 2-1/8" ball. Toilet waste outlet is23/8" diameter plain end extending 3" beyond the back of the unit. Regularly Furnished items include mounting hardware for walls up to 8" thick.
