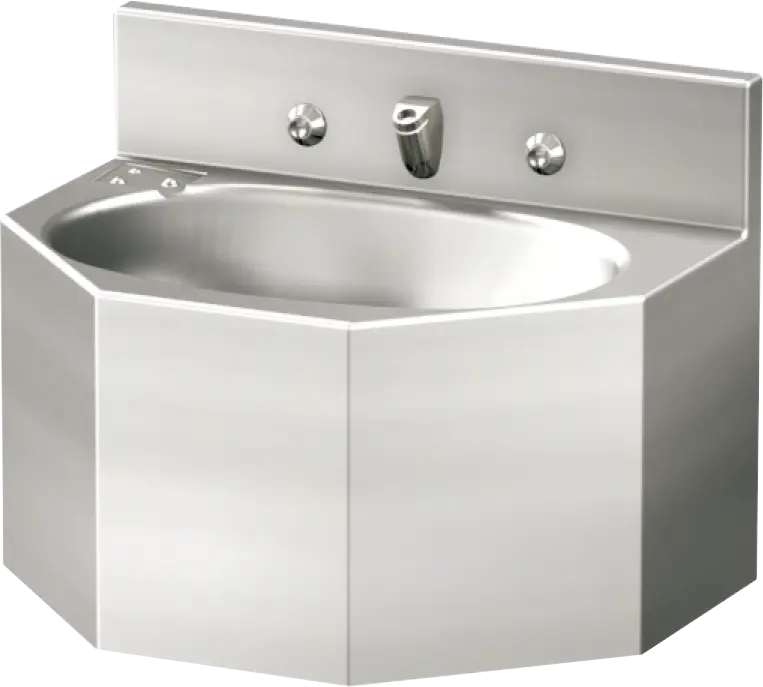

Acorn 18" Multi-Sided Lavatory with Oval Bowl

Lavatory Oval Bowl is 14-3/4" x 91-/2" x 5" deep. Standard elbow waste outlet is 1-1/2" O.D. plain end and extends 3" beyond the back of the fixture.

Optional Valve is an Air-Control pneumatically operated, pushbutton valve using atmospheric air. Pushbutton is vandal-resistant and requires less than 5 pounds to activate valve. Valve is direct acting, available as metering with non-hold open feature. Metering valve timing is adjustable from 5 to 60 seconds. Valve includes a 0.5 GPM flow control and can be remotely located up to 10 feet from the operating pushbutton. Valve conforms with the lead free requirements of NSF61, Section 9, 1997 and CHSC 118675.

Regularly Furnished items include a fast drain, an integral self-draining soap dish, and mounting hardware for walls up to 8” thick.

• 18" Multi-Sided Lavatory w/Oval Bowl

• Bubbler, Penal

• Off-Floor, Wall Outlet

• H&C Metering Air Control Valve

Item:

1. Optional -4 Air-Control Valve

2. Lav Valve Pushbuttons

3. Lav Bubbler

4. Lav Waste Outlet

5. Wall Mounting Hardware
