Mark's Part Number:
Manufacturer: Acorn
Manufacturer's Part: PS1030-F31-SG1

List Price:
List Price:
Clearance : 2 Left

2 available to ship

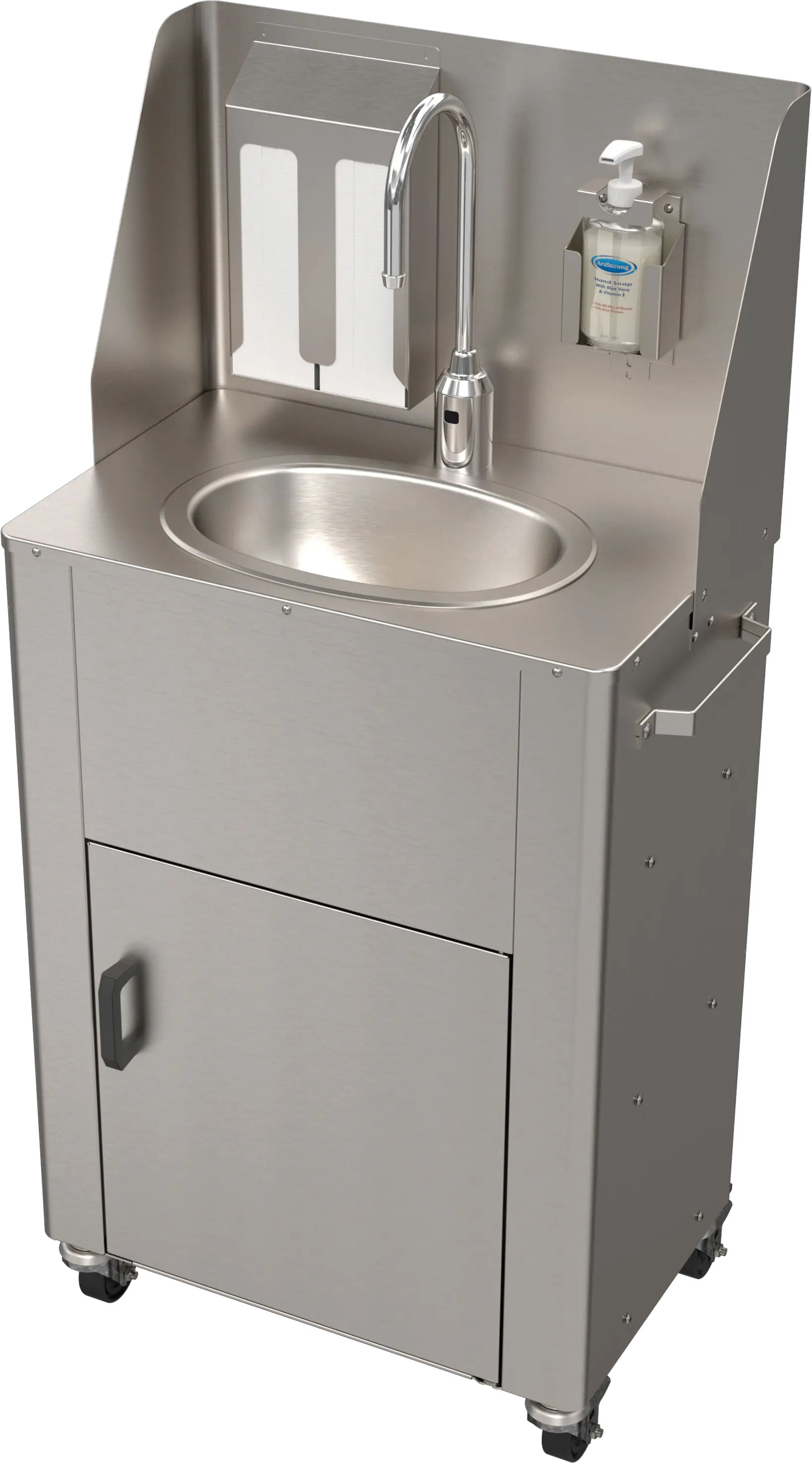

Acorn's Portable Hand-Wash Station is designed to assist with public safety in areas where permanent hand washing facilities and plumbing fixtures are not available. The portable, self-contained design instantly provides hand washing capability and is ideal for use in Emergency Triage Facilities, remote locations, and the entrance to public buildings and restaurants of all types. The models offered accommodate several water supply and wastewater configurations. Because of its durable stainless steel housing, certain units may also be configured for use in outdoor applications.
• Water supply may be provided from either an existing plumbed, potable water source such as a Hose Valve connection, or by using the self-contained, refillable, NSF Certified 5-Gallon Water Storage Tank. When the water source is self-contained using the Storage Tank, flow to the faucet is created by a On-demand Electric Water Pump.
• Battery-Operated Hands-Free Sensor faucets are single temperature supply and include a 0.5 GPM (1.9 LPM) Flow Control.
• Wastewater removal from the Wash Station is based on the site conditions and is accomplished using a Removable 6-Gallon Wastewater Tank, or Waste Hose.
• Oval Lavatory Bowl is 14-1/2” x 9-1/2” x 6” deep, and fabricated from heavy gage type 304 stainless steel, which is polished to a #4 satin finish. A removable grid strainer drain is provided. Wrap Around Splash Guard w/ 2-Bay Paper Holder & Soap Holder. (Not Shown)
• Portable Hand-Wash Cabinet is fabricated of type 304 stainless steel with exposed surfaces polished to a #4 satin finish. A hinged door with Magnetic Door Latch allows access to plumbing and storage components. The cabinet assembly is provided with handles and 3” diameter Swivel Casters for easy mobility and include Brake Levers to keep unit stationary during use.
