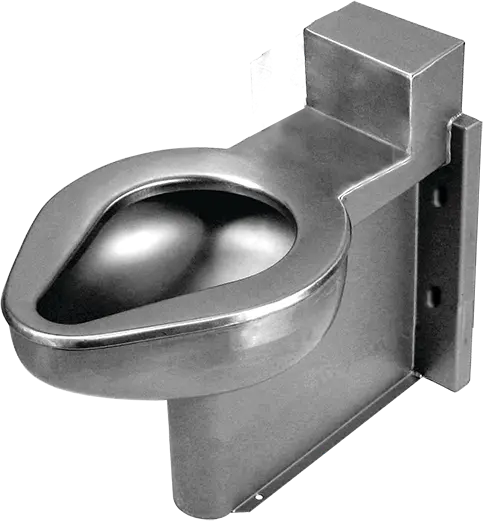

Willoughby Stainless Steel toilet, floor mount back spud back outlet, less mounting, replaces Crane 3-481

• Spud |
• Brand Name | Willoughby
• Model | ETWS-1490

Model# ETWS-1490-FM-RPF-BS-1.6-GWC replacement for Crane 3-481, Fixture is fabricated from 14 gauge, type 304 stainless steel all-welded with exposed stainless surfaces polished to a #4 satin finish. Standard toilet includes elongated toilet bowl with contoured seat, integral crevice-free self-draining flushing rim with positive after fill, and fully enclosed 3" O.D. trap which maintains a minimum 3-1/2" seal and passes a 2-5/8" ball. Blowout type requires 25 psi minimum flushing pressure. Fixture withstands loadings up to 2,000 lbs. with no measurable deflection and loadings up to 5,000 lbs. with no permanent damage. On back to back fixture installations, do not use standard cross type waste fittings: cross flow may result due to blowout jet action. Use sanitary or offset type waste fittings. Uses standard 6-point anchoring system (4 in the wall and 2 in the floor): threaded rods, nuts and washers furnished for walls up to 8" thick. Unit requires chase area for installation and maintenance.

Note: For 1.6 gallon flush, unit will pass a 2-1/8" ball.
