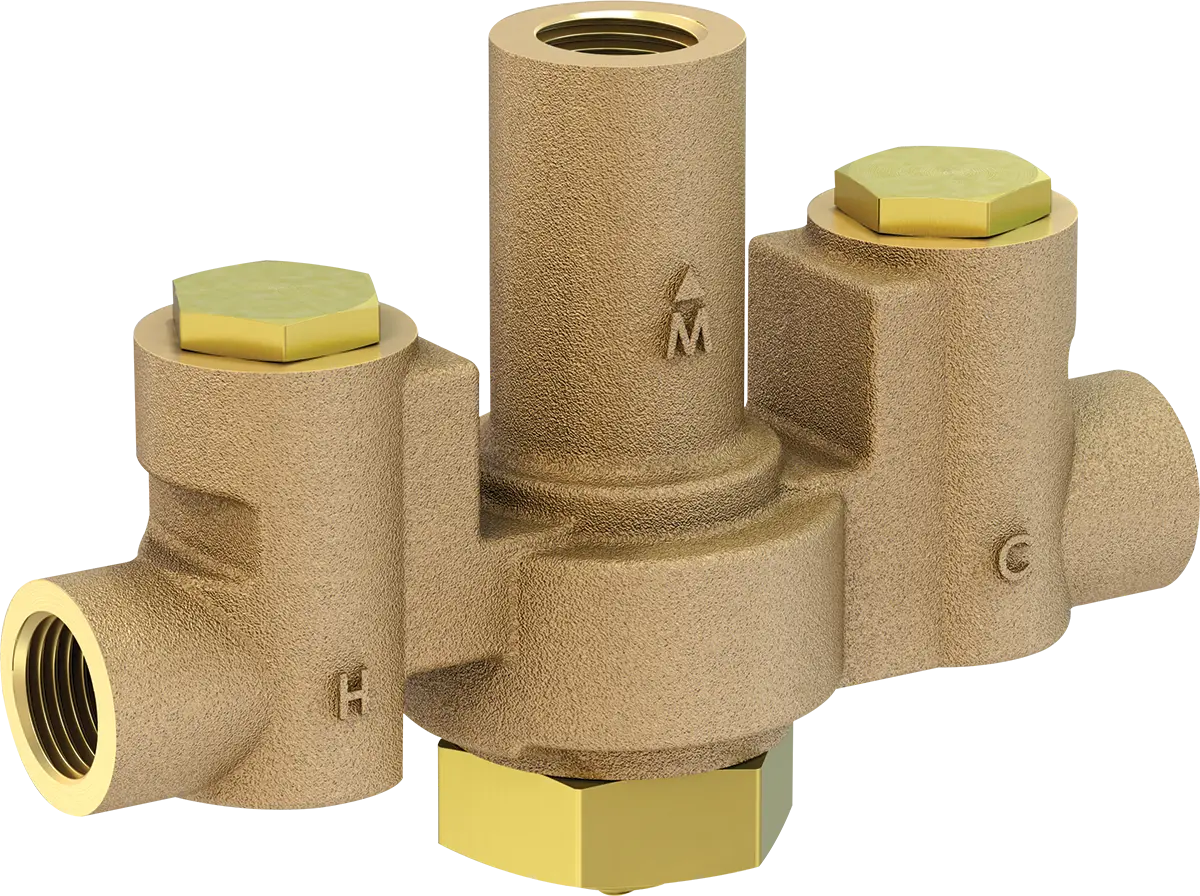

Bestcare Thermostatic Mixing Valve With Thermometer

• Lead-Free certified DZR brass body with corrosion resistant and lead-free internal components.

• Integral cartridge style checks with screens to prevent backflow and filter debris from entering the valve.

• Commercial quality paraffin actuator provides repeatable, reliable performance

• Lockable Brass ball valves optionally available

Specification:

• Maximum Operating Pressure: .................. 125 PSI (862 kPa)

• Maximum Hot Water Supply Temp: .................... 180°F (82°C)

• Minimum Hot Water Supply Temp.**: ..................... 10°F (6°C) Above Set Point

• Outlet Temp. Range*: ....................... 90°F-115°F (32°F-46°C)

• Flow Rate: ............... 12 GPM (45 LPM) @ 45 PSI (310 kPa) Differentia

• Certified Minimum Flow*: .......................... 0.5 GPM (1.9 LPM)

• Connections ................................................. 1/2” NPT Female

Guide Specification:

Thermostatic Mixing Valve shall be IAPMO lab certified per ASSE and CSA standards. Valve shall contain a copper encapsulated, paraffin-based thermal actuator. Valve shall be a solid brass body with a capacity of 12 GPM (45 LPM) AT45 PSI (310 kPa) differential and a maximum operating pressure of 125 PSIG (862 kPa). Supply pressure variation shall be up to 20%. Valve shall have an adjustable outlet temperature range of 90°F-115°F (32°C-46°C), factory set at 105°F (41°C). Valve shall comply with ASSE 1069, ASSE 1070 and CSAB125.3 standards. Valve shall be Acorn model ST7069.
